Application: Basements, roofs of industrial and civil buildings; Subways, tunnels, civil air defense projects and underground municipal works, etc Material: High Density Polyethylene, Creep-type Rubber Modified Asphalt, Silicone Oil Release Liner Film Length: 10m/20m/30m/customization Width: 1m/1.5m/customization Thickness:1.5mm/2.0mm/customization Color: Black Warranty: 5 year After-sale Service: Online technical support Project Solution Capability: Total solution for projects
| Material Introduction |

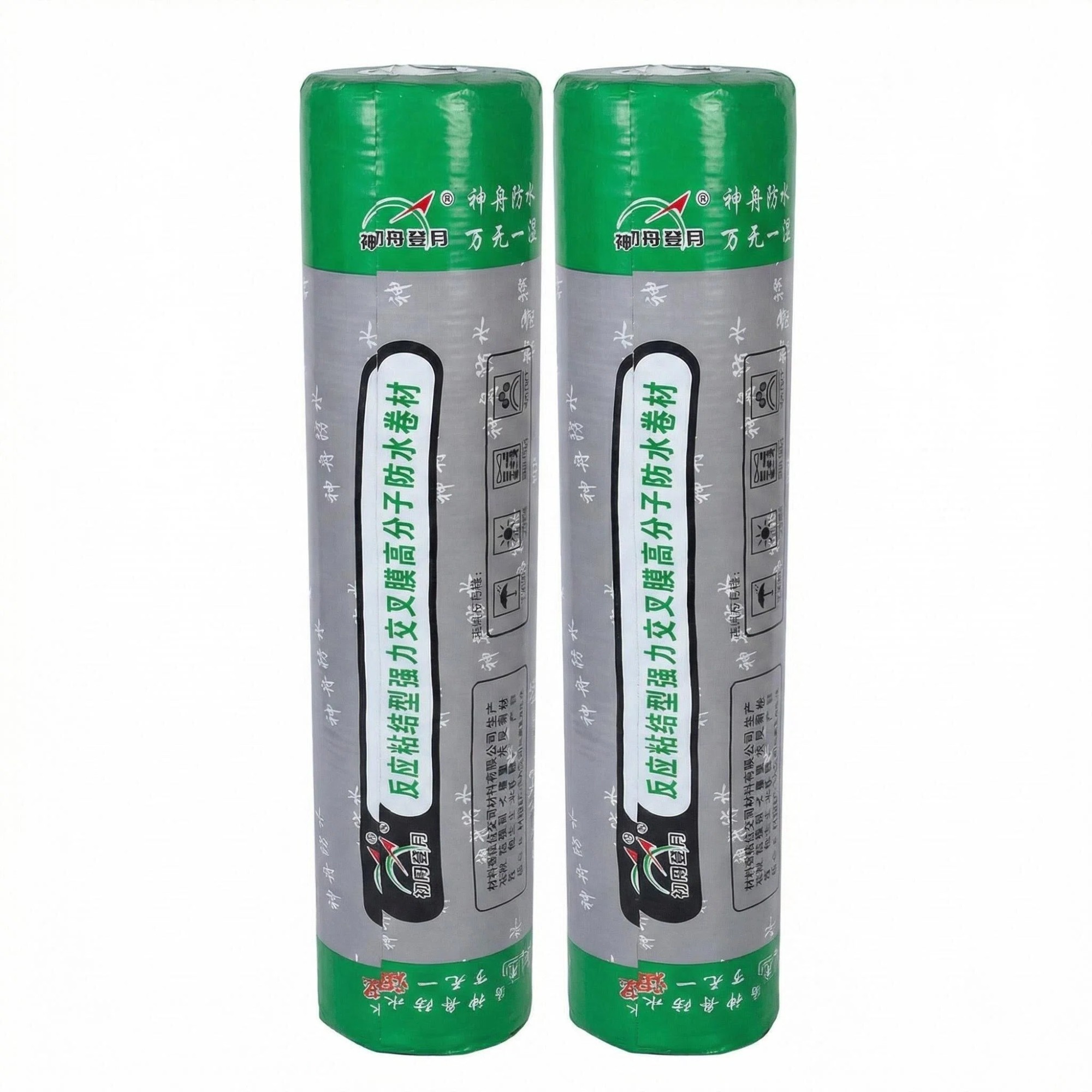

The reaction-bonded strong cross-laminated film polymer waterproofing membrane is made by coating a layer of
rubber asphalt self-adhesive material with creep resistance on the upper surface or both upper and lower surfaces
of the strong cross-laminated film, then covering with a silicone oil anti-stick release film. This product is a perfect
combination of fast reaction bonding technology and excellent-performance strong cross-laminated film.
| Technical Specifications |
Physical Properties | Indicator | |||
Type H | Type E | |||
Tensile Property | Tensile Strength (N/50mm) | Longitudinal ≥ | 300 | 200 |
Transverse ≥ | 300 | 200 | ||
Elongation at Maximum Tensile Strength % | Longitudinal ≥ | 50 | 180 | |
Transverse ≥ | 50 | 180 | ||
Tear Strength /N | Longitudinal ≥ | 20 | 25 | |
Transverse ≥ | 20 | 25 | ||
Heat Resistance | 70℃, 2h: No flowing, dripping or sliding ≤ 2mm | |||
Low Temperature Flexibility /℃ | -20 | |||
No cracking | ||||
Water Impermeability | No water penetration at 0.3MPa for 120min | |||
Peel Strength Between Membranes (Lap Edge), N/mm ≥ | 1.0 | |||
Oil Penetration /Sheets ≤ | 2 | |||
Tack Holding Time /min ≥ | 30 | |||
Peel Strength After Immersion in Cement Mortar, N/mm ≥ | 1.5 | |||
Dimensional Change Rate, % | ±1.0 | ±1.5 | ||
Thermal Stability | No blistering or flowing; maximum edge curling of polymer film or reinforcement not exceeding 1/4 of side length | |||
| Application |
(1) Waterproofing works for basements, roofs of industrial and civil buildings;
(2) Waterproofing and anti-seepage for subways, tunnels, civil air defense projects and underground municipal works;
(3) Waterproofing works for greening on garage roofs, roof gardens, etc.
| Storage and Transportation |
1. The membrane shall be stored in a dry and ventilated environment, protected from sun and rain.
2. When stored horizontally, the stacking height shall not exceed 5 layers; when stored vertically, it shall be stacked in
a single layer.
3. The storage temperature shall not exceed 45℃.
