Application: Mainly used for waterproofing and root resistance of green roofs Material: Modified Asphalt, APP/SBS Polymers, Root Resistant Agent etc. Length: 7.5m/10m/customization Width: 1m/1.5m/customization Thickness: 3.0mm/4.0mm/5.0mm/customization Color: Black Warranty: 5 year After-sale Service: Online technical support Project Solution Capability: Total solution for projects


| Material Introduction |

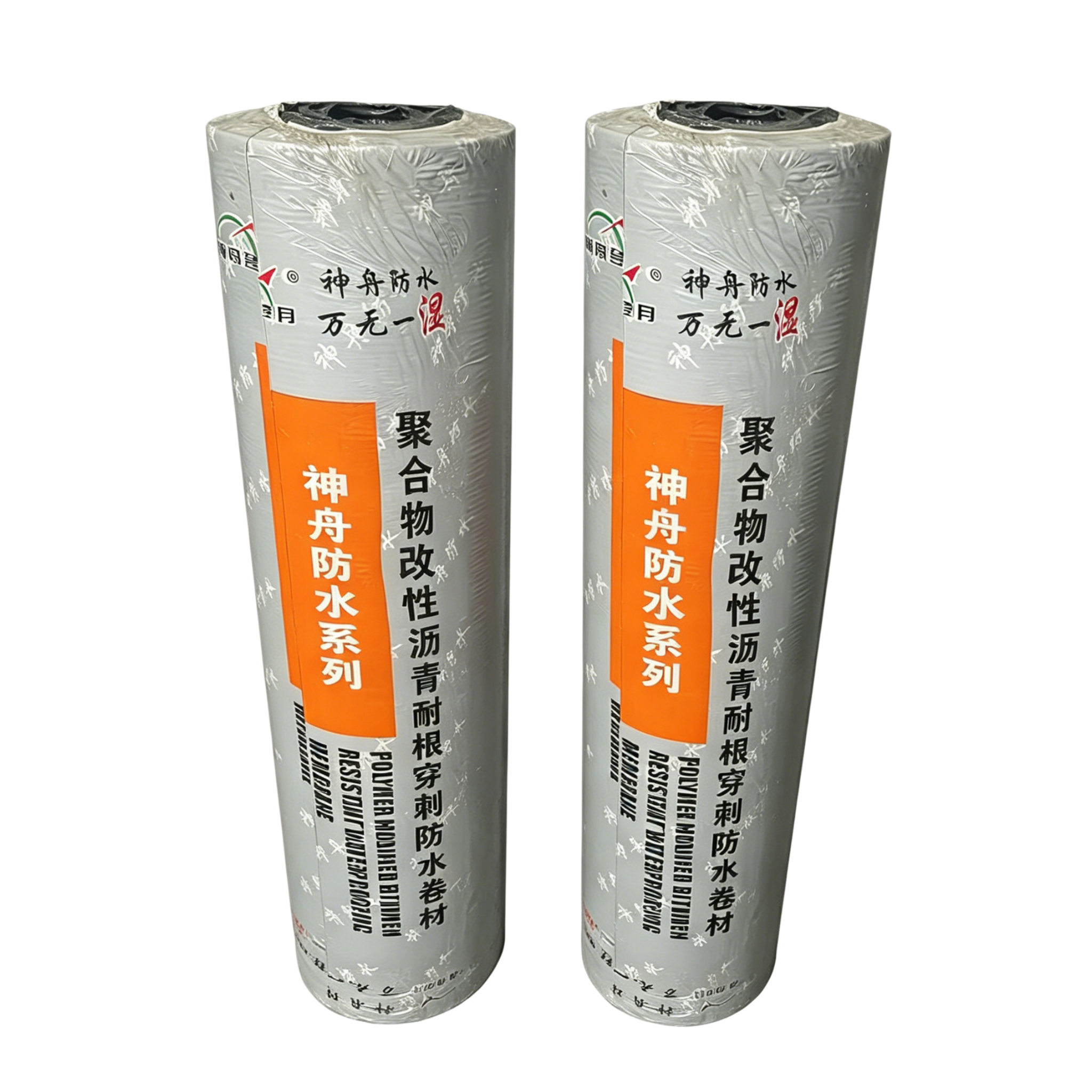

A waterproofing membrane with root penetration resistance, made by taking APP/SBS polymer or other polymer-
modified bitumen as the base and adding imported root inhibitors, is called modified bitumen root-resistant
waterproofing membrane (also known as root barrier membrane, anti-root membrane).The thickness of this type
of membrane is not less than 4mm, with a width of 1m and a length of 10m or 7.5m per roll. The surface of the
membrane is covered with polyethylene (PE) film, sand, aluminum (AL) foil or mineral particles (sheets).The membrane
is available with reinforcements such as polyester felt, glass fiber felt, glass fiber reinforced polyester felt, and composite felt.
| Technical Specifications |
Physical Properties | Technical Indicator | ||
Mildew and Corrosion Resistance | Mildew Resistance Grade | Grade 0 or Grade I | |
Seam Peel Strength | Untreated / (N/mm) | SBS | ≥ 1.5 |
APP | ≥ 1.0 | ||
Retention Rate after Heat Aging Treatment /% | ≥ 80 or Cohesive Failure of Membrane | ||
| Application |

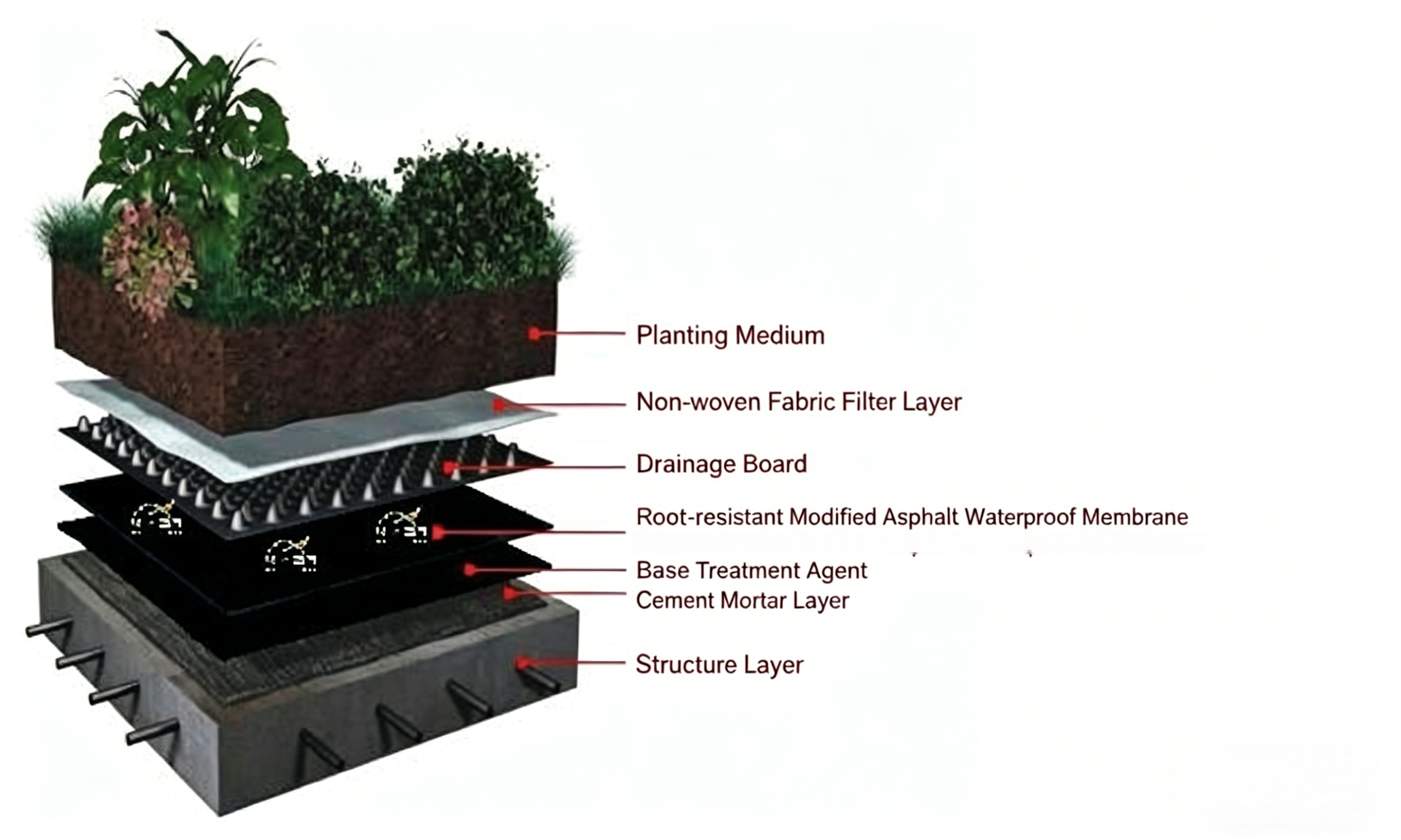

Mainly used for waterproofing and root resistance of green roofs
| Construction Key Points |
1. The base surface shall be firm, flat, dry and clean, and the base treatment agent shall be evenly applied;
2. Mark the datum control line;
3. The lap width shall be 80 ~ 100mm;
4. Generally, hot-melt full-adhesion roller construction is adopted, and the operation process and method are the
same as those of conventional APP/SBS modified bitumen waterproofing membrane;
5. Seal and close the edge of the hot-melt membrane;
6. Suitable for construction under the conditions of -10℃ ~ 35℃ and wind force within level 4.

| Company Profile |
Backed by premium product quality, our brand has built an outstanding reputation throughout the global waterproofing
industry. We boast a complete sales and service network covering the whole of China, alongside full accreditations of
ISO 9001, ISO 14001, ISO 45001 and other certifications. We have successfully won bids for a vast number of large-scale
domestic construction projects.
Over recent years, we have accelerated our global market expansion. Our waterproofing solutions are exported to Southeast
Asia, North America and European regions, receiving consistent positive feedback from all our clients. We are committed to
providing high-performance waterproofing solutions for global construction projects.
We supply a comprehensive range of waterproofing materials and membranes to fulfill diversified market demands. Our
flagship specialized products are listed as follows:
1. Modified Bitumen Membranes
2. Self-adhesive Waterproof Membranes
3. Reaction-bonded Waterproof Membranes
4. Polymer Waterproof Membranes
5. Waterproof Coatings
6. Anti-corrosion & Thermal Insulation Materials
